400kg~1500kg Jumbo Bag Packing Machine For Fluorspar Concentrate Powder
Jumbo Bag Packing Machine Introduction
Jumbo Bag Packing Machine for Fluorspar concentrate powder , big bag packing machine for Concrete Dried Mix , big bag packing machine , bulk bag filling machine, big bag filling machine, jumbo sack filling machine, bulk bag bagging machine, bulk bag packaging machine, gunny bag filling machine, big bag packing machine, jumbo bagging machine, big bag filling system 1ton, flour ton-packing scale , is special for 500~2000kg level quantitative packaging field. it's suitable for many materials such as feed, rice, flour, starch, cassava flour, grains, cereals, beans, pulses, bird seeds, ore, mineral powder, seeds, plastic pellets, wood pellet, animal feeds, cat litter, sand, grains, wood pellets, chemical powder, maize meal, bean starch, tapicco starch, pulses, animal food, cement sand mix, ore fine powder, pvc powder, copper powder, etc.
Jumbo Bag Packing Machine Technicals
| Quantitative range (kg/bag) |
400kg~1500kg |
| Control accuracy (%) |
Better than 0.2 |
| Packaging speed (tons/hour) |
10-30 |
| Type of packaging bag |
PP centralized packaging woven bag |
| Air supply source |
Pressure (MPa) |
0.5±0.1 |
| Air consumption (m3/min) |
0.1 |
| Power supply |
Power supply |
380V, 50Hz |
| Power (kW) |
5.0 |
| Working environment |
Relative humidity |
<95% |
| Ambient temp. |
-15℃~45℃ |
| Material |
The part in contact with the material is 316L stainless steel, the rest is 304 stainless steel. |
Jumbo Bag Packing Machine Components List
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC, HMI (color touch screen panel) use the WEINVIEW/ Delta, the electric element we use the Schneider/CHNT,
the load cell we installation 3pcs Mettler Toledo load cells as you need.
| No |
Name |
Manufacturer |
QTY |
| 1 |
Control system |
Canada Germain or Simons |
1 |
| 2 |
Weighing controller |
Canada Germain or Simons |
1 |
| 3 |
Weighing sensor |
Mettler Toledo |
4 |
| 4 |
Approach switch |
Schneider |
1 |
| 5 |
Optoelectronic switch |
Schneider |
1 |
| 6 |
Contactor & breaker |
Schneider |
10 |
| 7 |
Other low-pressure component |
Schneider |
1batch |
| 8 |
Motor |
CPG, China |
1batch |
| 9 |
Cylinder |
AIRTAC |
1batch |
Our Advantages
- EAGLE Packing Automatic Establish in 2007 with Rich Experience for over 15 years
- We Have Professional Technical Developing Team & After-Service Engineering Team
- Our Products Have Reached About 30 Countries
- We Focus on Big Bag Packing & Welcome Customer Coming for Checking Machine Directly
SPECIALIST
Permanent investment in research and development, we are specialists in bagging bulk solids in all sorts of bags: open mouth bags, big bags etc.
EXPERIENCE
We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity.
PROFESSIONAL SERVICE TEAM
We have a professional team to provide you with 24-hour online service. And our efficient after sales service is present worldwide.

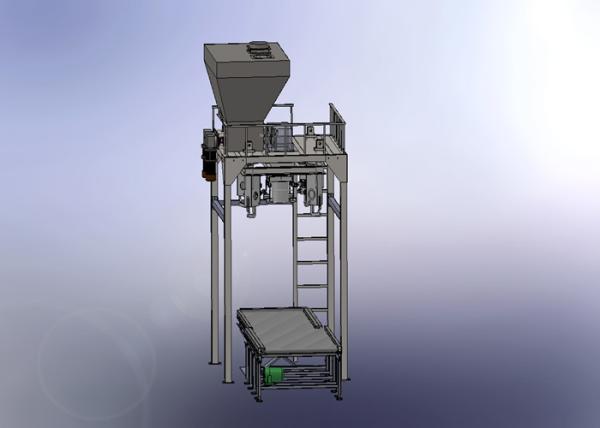

Machine Main Parts
1. Electric rotary valve
2. Main weighing bracket
3. Access platform
4. Loadcell
5. Automatic release mechanism
6. Automatic bag clamping mechanism
7. Transition bin
8. Elevating cylinder
9. Ladder and guardrail
10. Pallet
11. Chain conveyor
12. Solenoid valve control cabinet
13. Explosion-proof control cabinet
Machine Installation
We will supply you the user manual and electrical drawing of all the machines for you to install the machines by yourself. If you think you cannot install the machines by yourself, we can send engineer to your factory for installing and debugging etc.
